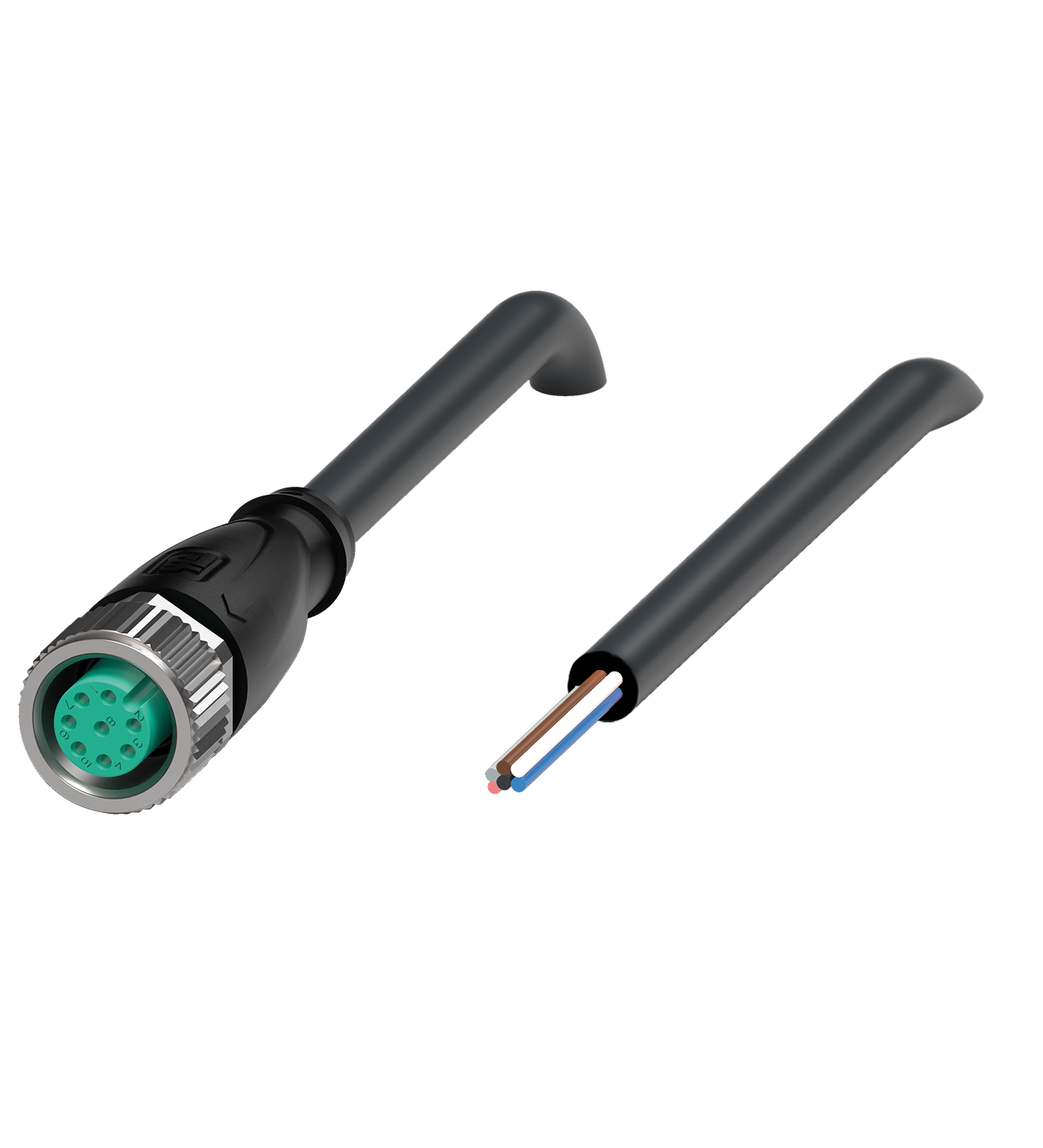

V19-G-BK15M-PUR-U-Y70176414

Female cordset. Female cordset single-ended M12 straight A-coded, 8-pin, PUR cable 6-core black, UL approved. Customization: customer-specific pin assignment. Connector 1: . ConnectionsocketConstructi...

Female cordset. Female cordset single-ended M12 straight A-coded, 8-pin, PUR cable 6-core black, UL approved. Customization: customer-specific pin assignment. Connector 1: . ConnectionsocketConstruction typeM12StylestraightLockingscrew connectionNumber of pins8CodingA-coded: . Connection: socket. Construction type: M12. Style: straight. Locking: screw connection. Number of pins: 8. Coding: A-coded. Connector 2: . Connectioncable end: . Connection: cable end. Operating voltage: max. 30 V AC/DC. Operating current: max. 2 A. Degree of protection: EN 60529. Plug connection: connector M12 x 1 : IEC 61076-2-101. Flammability: UL 1581; DIN EN 60332-2-2. Halogen-free: IEC 60754-1. UL approval: AWM STYLE 20549 AWM I A/B 80°C 300V FT2 (cable). UL File Number: E231213. Ambient temperature: . Plug connector-40 ... 90 °C (-40 ... 194 °F)Cable, fixed installation-40 ... 80 °C (-40 ... 176 °F)Cable, flexing-20 ... 80 °C (-4 ... 176 °F): . Plug connector: -40 ... 90 °C (-40 ... 194 °F). Cable, fixed installation: -40 ... 80 °C (-40 ... 176 °F). Cable, flexing: -20 ... 80 °C (-4 ... 176 °F). Pollution degree: 3. Plug connector: . Tightening torque0.6 NmLoosening protectionintegratedTool installationstraight knurling and hexagon nut SW = 14 mmMating cyclesmin. 100: . Tightening torque: 0.6 Nm. Loosening protection: integrated. Tool installation: straight knurling and hexagon nut SW = 14 mm. Mating cycles: min. 100. Degree of protection: IP66 / IP68 / IP69. Cable: according to IEC/EN 60228 (DIN VDE 0295) class 5. Sheath diameter4.8 mmBending radius> 10 x cable diameter, movable installation > 8 x cable diameter, fixed installationSheath stripping forcemax. 50 N / 300 mmSheath colorblack (similar to RAL 9005)Number of cores6Core cross section0.25 mm2Cores colorCore 2: brown Core 4: grey Core 5: white Core 6: pink Core 7: blue Core 8: blackCore construction14 x 0.15 mm ∅LengthL15 mCable codeLi 9Y 11Y 6 x 0,25: . Sheath diameter: 4.8 mm. Bending radius: > 10 x cable diameter, movable installation > 8 x cable diameter, fixed installation. Sheath stripping force: max. 50 N / 300 mm. Sheath color: black (similar to RAL 9005). Number of cores: 6. Core cross section: 0.25 mm2. Cores color: Core 2: brown Core 4: grey Core 5: white Core 6: pink Core 7: blue Core 8: black. Core construction: 14 x 0.15 mm ∅. Length: 15 m. Cable code: Li 9Y 11Y 6 x 0,25. Mass: 126.45 g. PWIS free: yes. Halogen-free: yes. Plug connector: . Screw connectionZinc diecast, nickel-platedBodyTPU, blackSealFKMContact surfacegold plated (Au)FlammabilityV-2: . Screw connection: Zinc diecast, nickel-plated. Body: TPU, black. Seal: FKM. Contact surface: gold plated (Au). Flammability: V-2. Cable: . SheathingPUR based on polyetherCoresbare copper (Cu)Core insulationPPUV resistanceyesChemical resistancegoodMicrobial resistanceyesHydrolysis resistanceyesFlammabilityFT2: . Sheathing: PUR based on polyether. Cores: bare copper (Cu). Core insulation: PP. UV resistance: yes. Chemical resistance: good. Microbial resistance: yes. Hydrolysis resistance: yes. Flammability: FT2

Brand	Pepperl Fuchs
Lifecycle status	active
