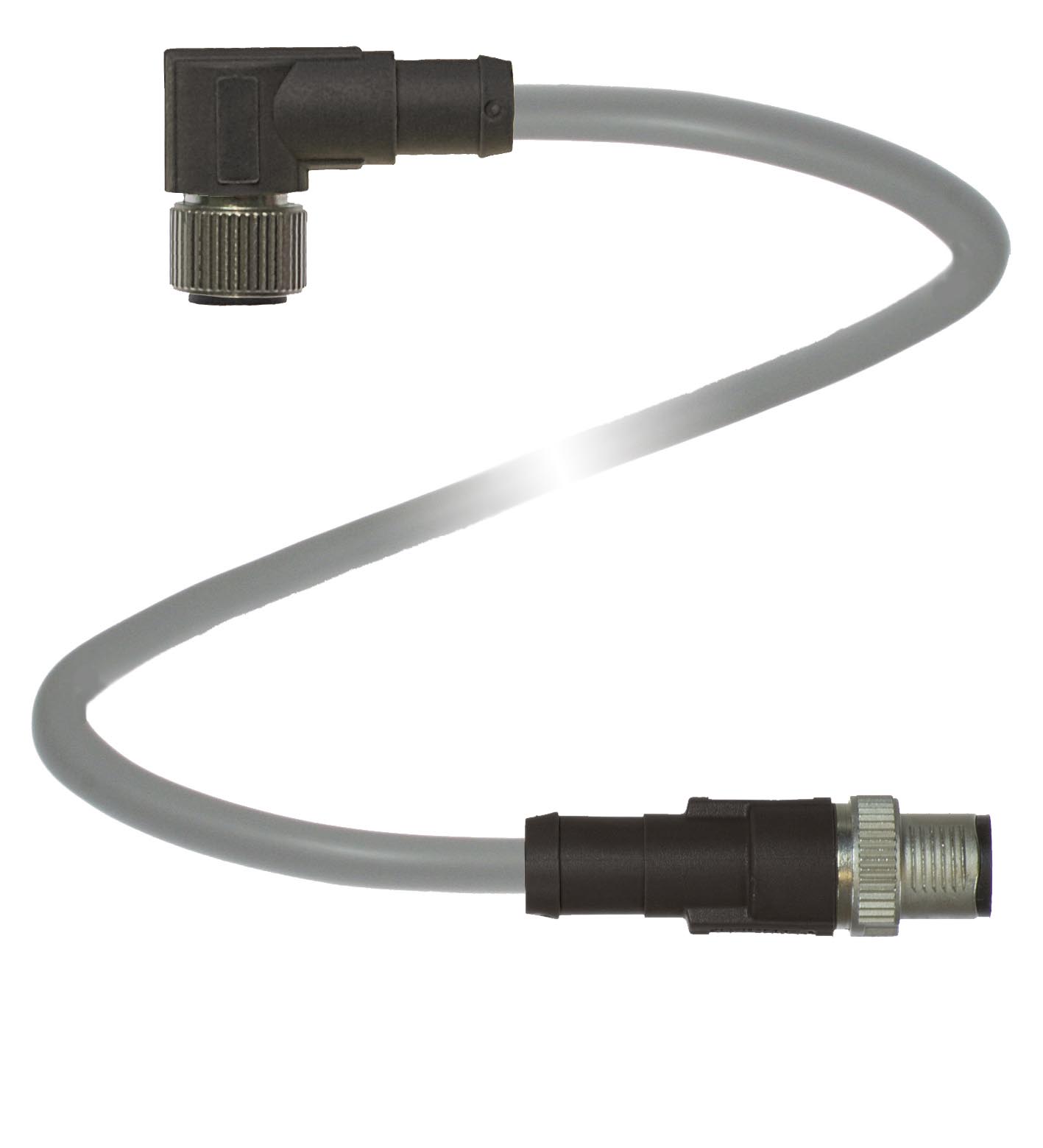

V15L-W-0,3M-PUR-U-V15L-G

Connection cable. Cordset M12 socket angled to M12 plug straight L-coded, 5-pin, PUR cable grey, UL approved. Connector 1: . ConnectionsocketConstruction typeM12StyleangledLockingscrew connectionNumbe...

Connection cable. Cordset M12 socket angled to M12 plug straight L-coded, 5-pin, PUR cable grey, UL approved. Connector 1: . ConnectionsocketConstruction typeM12StyleangledLockingscrew connectionNumber of pins5CodingL-coded: . Connection: socket. Construction type: M12. Style: angled. Locking: screw connection. Number of pins: 5. Coding: L-coded. Connector 2: . ConnectionplugConstruction typeM12StylestraightLockingscrew connectionNumber of pins5CodingL-coded: . Connection: plug. Construction type: M12. Style: straight. Locking: screw connection. Number of pins: 5. Coding: L-coded. Rated operating voltage: 600 V AC. Operating voltage: max. 48 V AC / 63 V DC. Operating current: max. 16 A. Degree of protection: EN 60529. Plug connection: connector M12 x 1 : IEC 61076-2-111. Flammability: IEC 60332-1-2. Halogen-free: DIN VDE 0472-815. Oil resistance: DIN EN 60811-404. UL approval: AWM STYLE 20939 80°C 600V VW-1 (cable). UL File Number: E520151. Ambient temperature: . Plug connector-40 ... 125 °C (-40 ... 257 °F) note deratingCable, fixed installation-40 ... 90 °C (-40 ... 194 °F) UL -40 ... 80 °C (-40 ... 176 °F)Cable, flexing-30 ... 90 °C (-22 ... 194 °F) UL -30 ... 80 °C (-22 ... 176 °F): . Plug connector: -40 ... 125 °C (-40 ... 257 °F) note derating. Cable, fixed installation: -40 ... 90 °C (-40 ... 194 °F) UL -40 ... 80 °C (-40 ... 176 °F). Cable, flexing: -30 ... 90 °C (-22 ... 194 °F) UL -30 ... 80 °C (-22 ... 176 °F). Pollution degree: 3. Plug connector: . Tightening torque0.6 NmTool installationstraight knurling and hexagon nut SW = 14 mmMating cyclesmin. 100: . Tightening torque: 0.6 Nm. Tool installation: straight knurling and hexagon nut SW = 14 mm. Mating cycles: min. 100. Degree of protection: IP65 / IP67 / IP69. Cable: according to IEC/EN 60228 (DIN VDE 0295) class 5. Sheath diameter8 mmBending radius> 7.5 x cable diameter, movable installation > 4 x cable diameter, fixed installationSheath colorgrey (similar to RAL 7032)Number of cores5Core cross section1.5 mm2Cores colorCore 1: brown Core 2: white Core 3: blue Core 4: black Core 5: pinkLengthL0.3 mCable codeLi 9Y 11Y 5 x 1,50: . Sheath diameter: 8 mm. Bending radius: > 7.5 x cable diameter, movable installation > 4 x cable diameter, fixed installation. Sheath color: grey (similar to RAL 7032). Number of cores: 5. Core cross section: 1.5 mm2. Cores color: Core 1: brown Core 2: white Core 3: blue Core 4: black Core 5: pink. Length: 0.3 m. Cable code: Li 9Y 11Y 5 x 1,50. Mass: 160 g. PWIS free: yes. Halogen-free: yes. Plug connector: . Screw connectionZinc diecast, nickel-platedBodyTPE, blackSealFKMContact surfaceCu/AuFlammabilityHB: . Screw connection: Zinc diecast, nickel-plated. Body: TPE, black. Seal: FKM. Contact surface: Cu/Au. Flammability: HB. Cable: . SheathingPURCore insulationPPOil resistanceyesFlammabilityVW-1: . Sheathing: PUR. Core insulation: PP. Oil resistance: yes. Flammability: VW-1

Brand	Pepperl Fuchs
Lifecycle status	active
