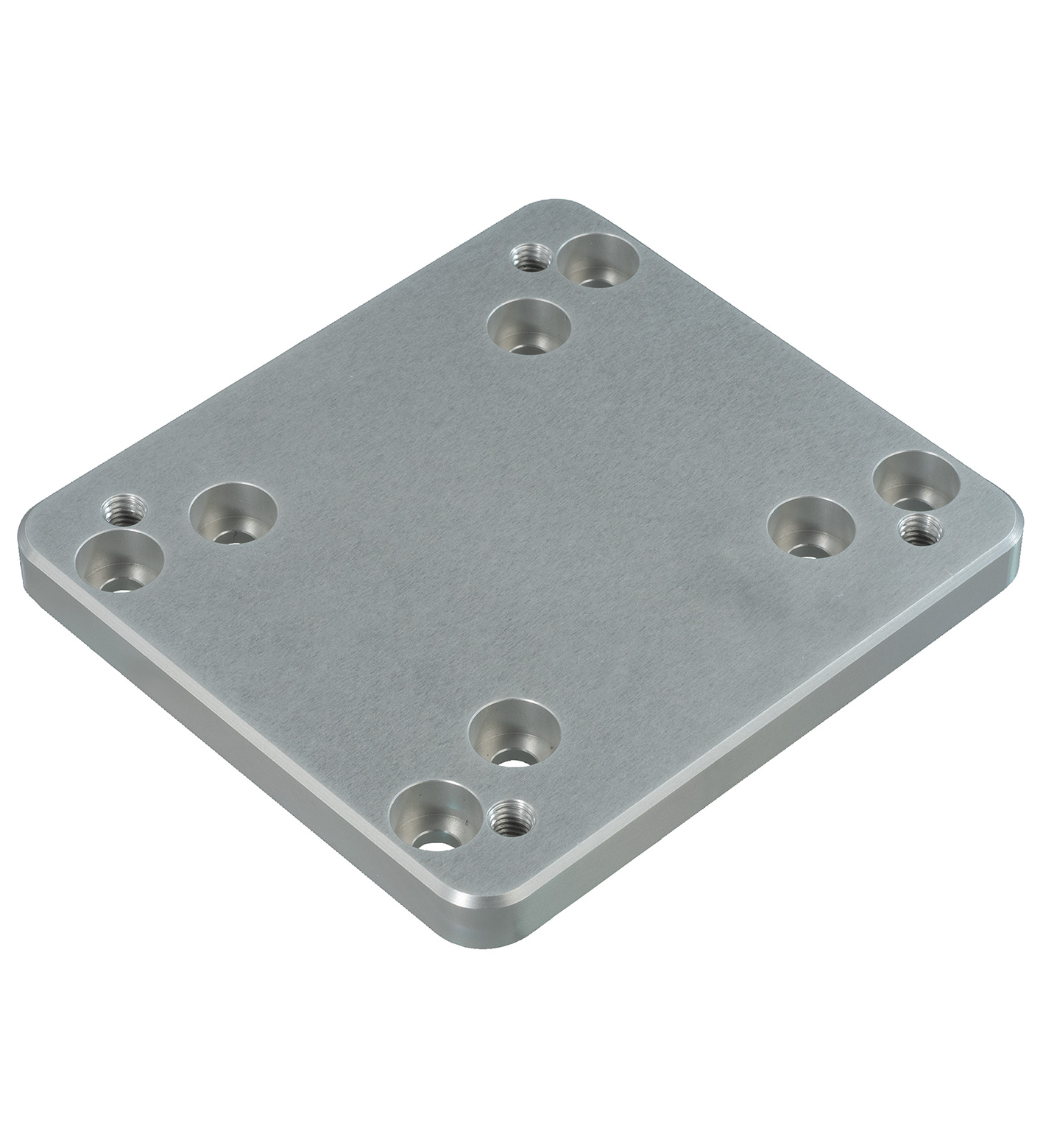

MH-F42-MK0

Adapter plate. Adapter plate for mounting an F42 ultrasonic sensor on different hole patterns at the installation location, Suitable for F42 series, Adapter plate for existing hole patterns of the ult...

Adapter plate. Adapter plate for mounting an F42 ultrasonic sensor on different hole patterns at the installation location, Suitable for F42 series, Adapter plate for existing hole patterns of the ultrasonic series K0, Compatible with sensors with a 47 mm hole pattern. Suitable components: ultrasonic sensors of the F42 series. Material: anodized aluminum. Mass: 146 g. Tightening torque, fastening screws: For mounting of the ultrasonic sensor onto the adapter plate: 2.5 Nm. Dimensions: . Height8 mmWidth82 mmLength90 mm: . Height: 8 mm. Width: 82 mm. Length: 90 mm. Scope of delivery: For mounting of the adapter plate: - 4 cylinder head screws M5x16 (stainless steel) - additionally 4 M5 nuts and washers each for push-through mounting For mounting of the ultrasonic sensor onto the adapter plate: - 4 cylinder head screws M5x35 (stainless steel)

Brand	Pepperl Fuchs
Lifecycle status	active
